Optical Coatings Enhance Beam-splitter Performance

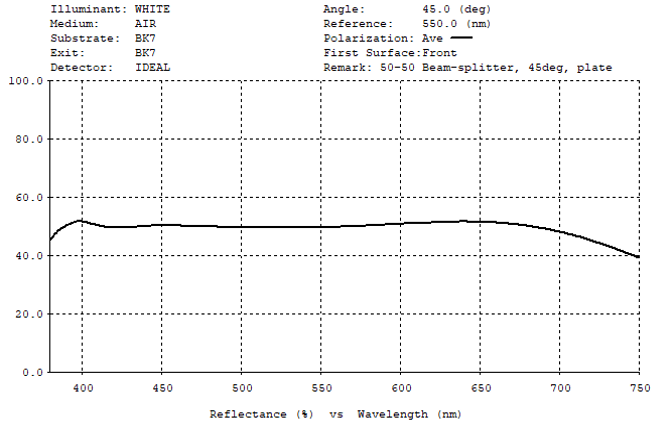

 A 50T-50R beam-splitter designed for use at 45deg AOI across the visible spectrum (~400-700nm) is shown below. This coating is a 7-layer dielectric design. Note: for clarity, only the Reflectance condition is shown in these ‘ratio’ models.

Bandwidth, Performance, and Cost

Generally, the higher the AR coating efficiency, the higher the cost. It is a trade-off between bandwidth, performance, and cost.  For example, in Lidar applications operating at 905nm, it is possible to achieve R< 0.05% at 905nm with a bandwidth +/-5nm. It also theoretically possible to extend the range 800-1000nm and maintain R<0.05%. However, it becomes much more challenging to manufacture increasing cost. Designing for R<0.2% across this range may be a more cost-efficient solution.  As a reasonable low-cost option, the most common visible coatings are specified at Ravg < 0.5%, over 400-700nm.  Extended bandwidth options such as visible through Near Infra-Red to SWIR are also available.  The theoretical best performance for coatings designed to cover 400nm to 1600nm, is about Ravg = 0.95%.  Typically, coating providers will offer Ravg <1.5% to allow for manufacturing tolerances.  Figure 3 illustrates a multilayer broadband AR coating at normal incidence over 400 – 1600nm.  This specific coating is designed for low index glass types, in this case substrate is N-Bk7.

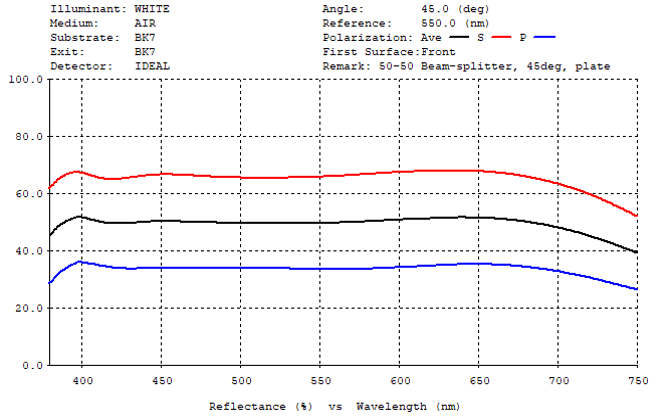

In the above case we chose to only show the result for average polarization, however, if the optical system is sensitive to polarization bias, this may need to be taken into consideration. Here is the same beam-splitter including the performance of both P (parallel) and S (perpendicular) rays.

Another consideration is to apply an Anti-Reflecting (AR) coating on the back surface to avoid ghost imaging. The AR coat should also be designed for operation at 45deg AOI.

Ghost imaging can also be avoided by using a cube beam-splitter. Cubes are the preferred arrangement when the optical pathlengths of the split beams need to be equal or if the optical system cannot tolerate the displacement that occurs on the transmitted beam through the plate glass (refraction).

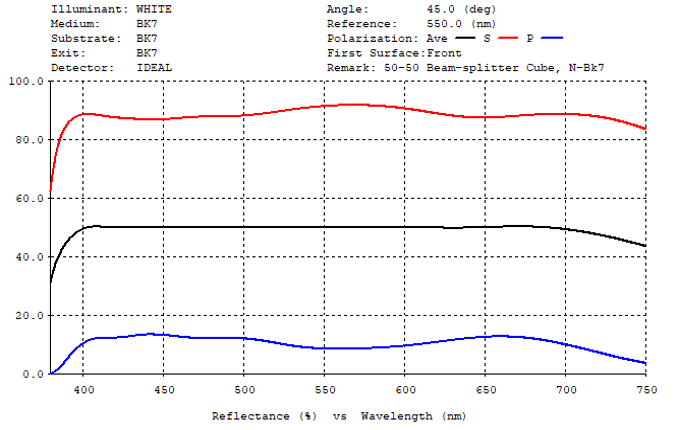

As can be seen in the above cube performance, the polarization splitting is more extreme in the cube than in the plate beam-splitter. By taking advantage of this condition, it is possible to make broad band polarizing cubes. Such Polarizing Coatings will be featured in our next article, ‘Polarization Control Coatings’.

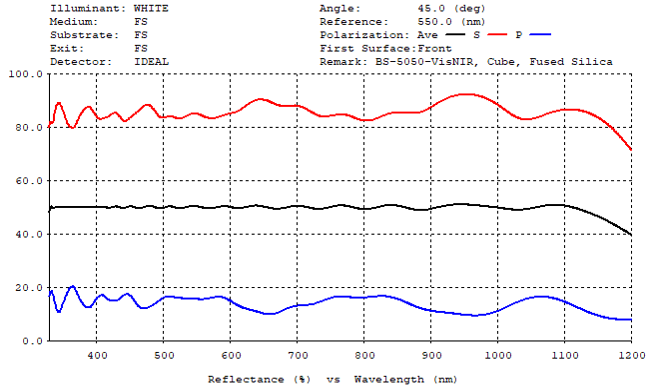

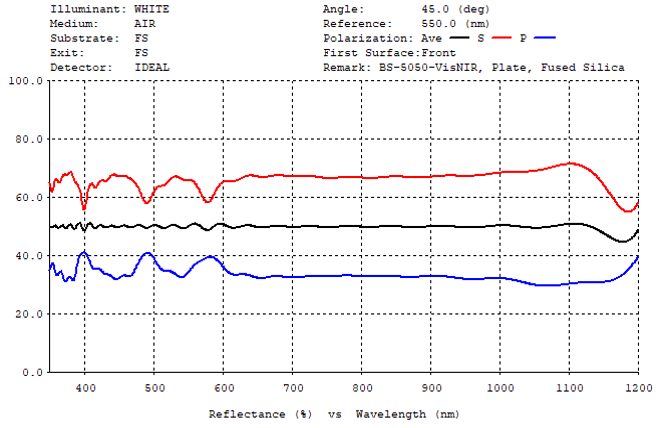

As final examples of T:R ratio beam-splitters, the above compares 50:50 beam-splitters designed for an extended wavelength application 350-1100nm for both plate and cube. The plate design (on the left) is a 47 layer coating (Ta2O5/SiO2) and the cube design (on the right) is a 41 layer coating (Ta2O5/SiO2). Although the cube BS requires fewer layers, the total physical thickness of the cube coating is 10% thicker than the plate coat. The key comparison is in the polarization splitting, so if your system is polarization sensitive, the preferred choice may be the Plate option. For Optical Systems requiring very low polarization splitting see our next article, ‘Polarization Control Coatings’.

Color Separation Beam-splitters (Dichroic)

The term dichroic refers to the splitting of light into two colors. This is quite different from the R%, T% ratio previously discussed. Dichroic splitters are often referred to as Edge Filters and are normally Short Wave Pass type (SWP) or Long Wave Pass type (LWP). As the names suggest the SWP filter is designed to transmit shorter wavelengths and block the longer wavelengths, while the LWP filter provides the opposite effect, transmitting longer wavelengths and blocking shorter.

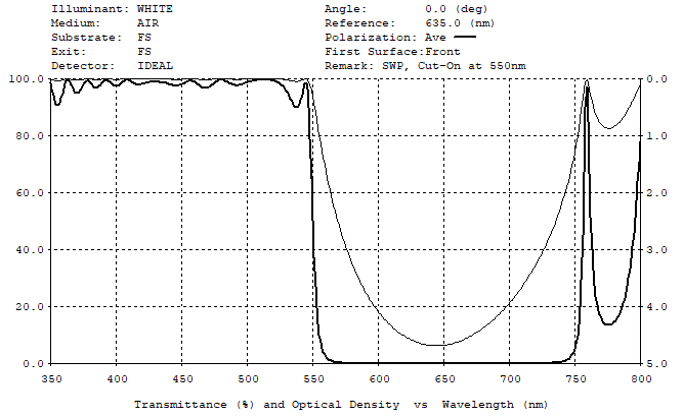

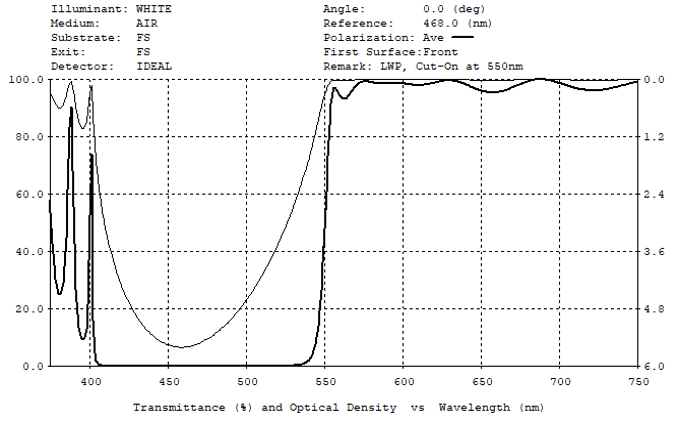

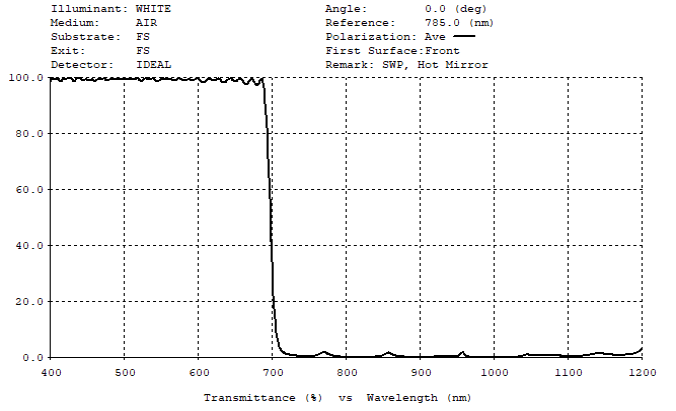

Below are examples of both SWP and LWP filters. The dark line shows T% and the light line shows Optical Density which is a measure of the amount of light blocked by the filter. As the coating materials are essentially non-absorbing, the blocked light is reflected by the filter. Note: for clarity, only the Transmittance condition is shown in these dichroic models.

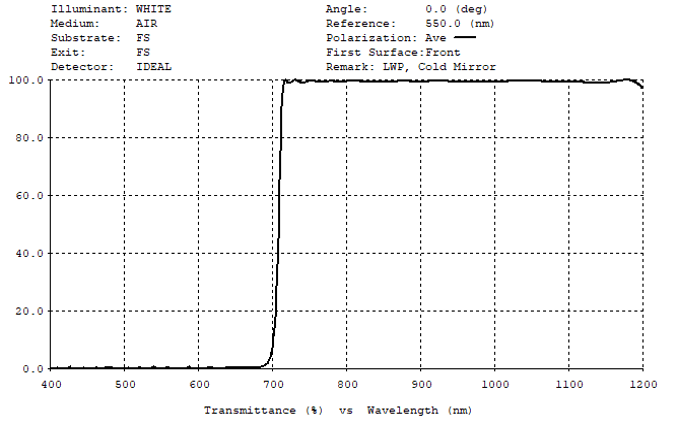

The Optical Density or blocking can be increased by adding more layers to the design where the added layers are similar to the layers in the original design.  It is also possible to extend the blocking wavelength range of the SWP filter by adding thicker layers and by adding thinner layers to the LWP filter. If we design a LWP filter to block (reflect) the Visible wavelengths and transmit the wavelengths in the Near Infra-Red where heat is radiated then we have a LWP type ‘Cold Mirror’. Such coatings are used in dental and medical lighting where the mirrors reflect the intense light onto the patient while simultaneously transmitting the heat radiated from the lamp away from the patient. Alternately, by extending the blocking of the SWP filter to cover the Near Infra-Red range while transmitting the Visible range we can design a ‘Hot Mirror’.

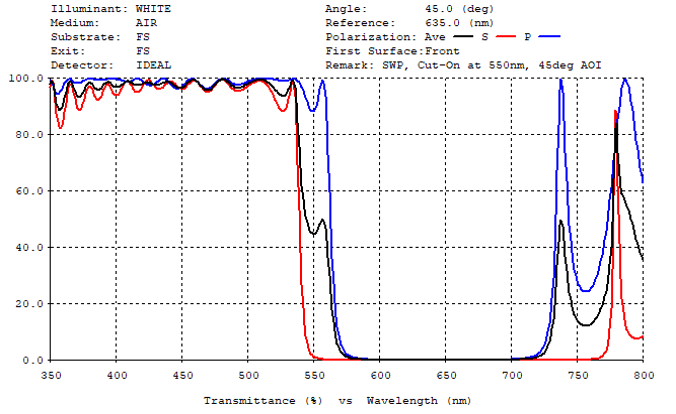

Dichroic Filters can be designed to operate at 45deg AOI. In the example below a conventional SWP design (plate) is modified for 45deg incidence. As can be seen the S and P polarizations cut-on wavelengths differ at 45deg, compromising the sharp transition from blocking to transmitting. For many operations this is acceptable, however, this design will fail in applications such as Fluorescence Microscopy where a very sharp transition is often required to separate the excitation wavelength from the emission wavelength. In such cases more complex filters are needed to provide the necessary wavelength separation. These ‘Fluorescence’ type beam-splitters are covered in the next article “Polarization Control Coatings”.
